Performance Series In-Wall
The DSW600 is a shallow-depth, digital active in-wall subwoofer designed to handle the most bass heavy music and movie soundtracks with ease. Deep, powerful and exciting bass is delivered with perfect timing down to 24Hz thanks to Meridian’s unique ‘DSP’ advantage and Enhanced Bass Alignment Technology.
The DSW600 can integrate into a variety of installation applications, it delivers impactful bass in any room size and as part of any loudspeaker configuration; it can be used to augment the bass from other loudspeakers in both two-channel and surround-sound systems, and it can be used to play the dedicated LFE channel - either on its own or when used in multiples.
Where to buyPerformance Series In-Wall
DSW600

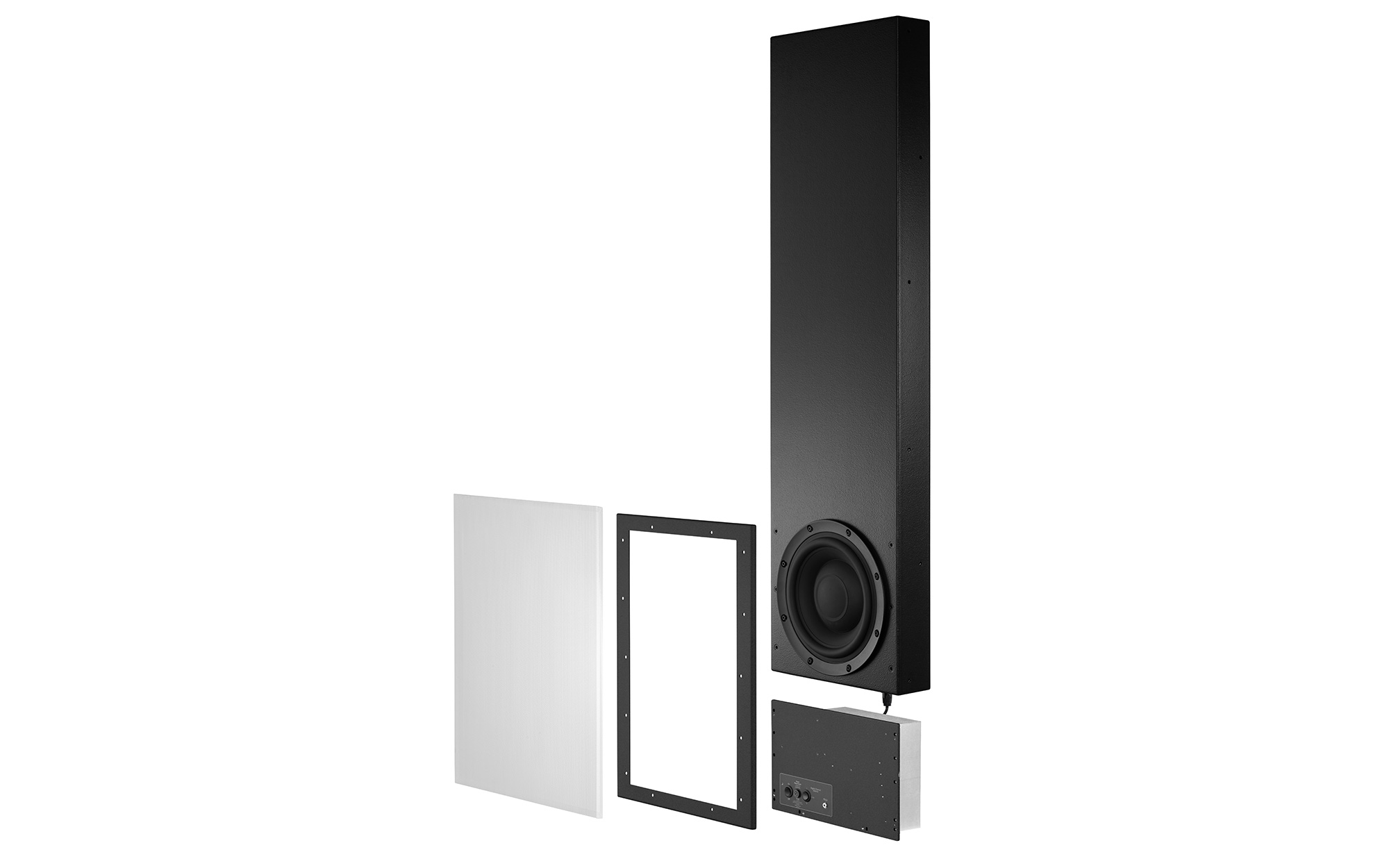

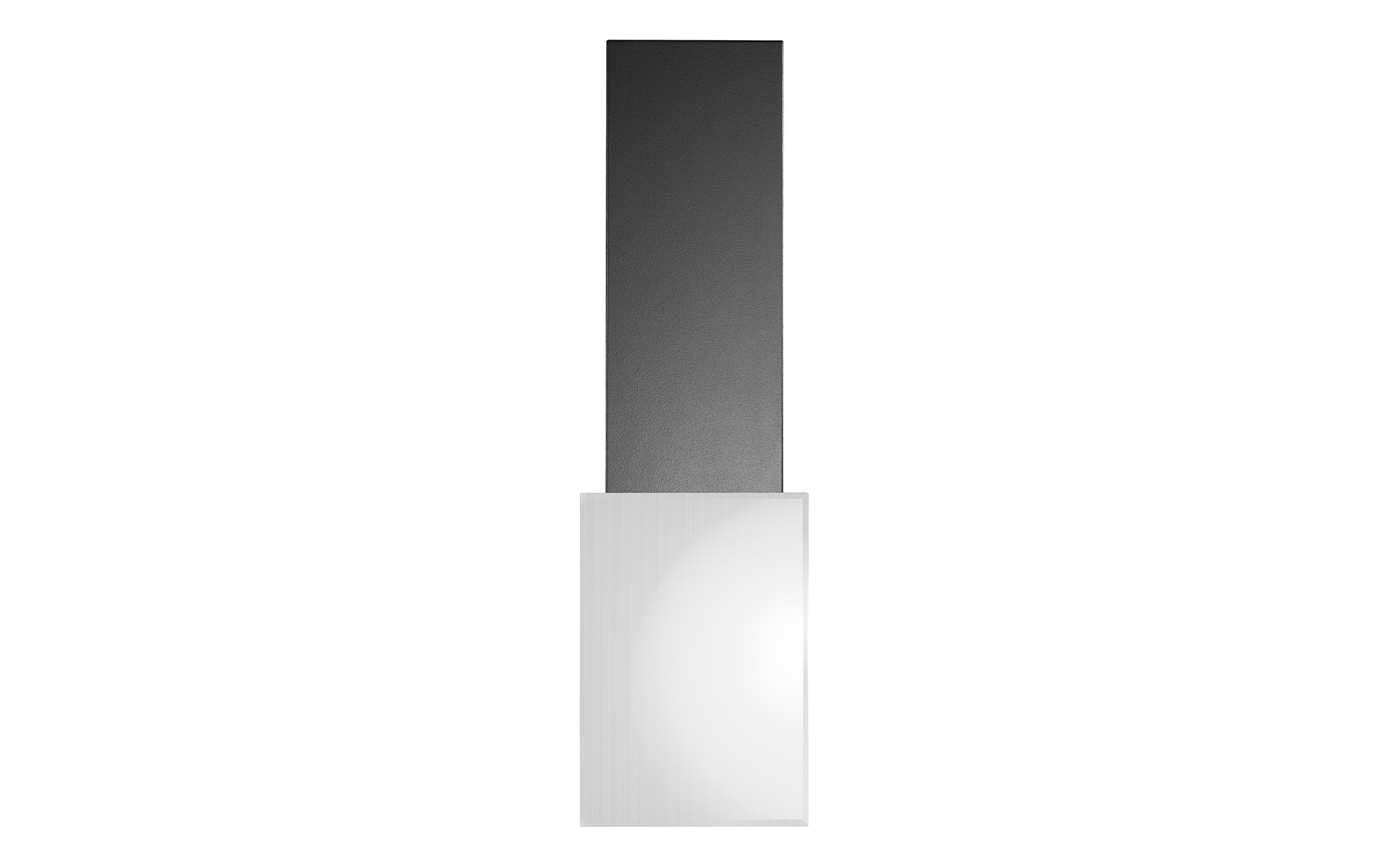

The DSW600 is a shallow-depth in-wall subwoofer designed to handle the most bass-heavy music and action-movie soundtracks effortlessly. Deep, powerful and exciting bass is delivered with perfect timing down to 24Hz thanks to Meridian’s unique ‘DSP’ advantage and Enhanced Bass Alignment Technology. The DSW600 can integrate into a variety of installation applications. It delivers impactful bass in any room size as part of any loudspeaker configuration and, when combined with any Meridian Architectural loudspeaker, the resulting two-box in-wall solution provides full-range performance suitable for either two-channel or surround-sound systems. It can also be used to play the dedicated LFE channel - either on its own or when used in multiples.
Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.
Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeaker. It ensures that all frequencies reach the listener's ear at the same time.
Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.
Meridian Resonance Control uses the dimensions of the room in order to compensate for the primary modal resonances that are especially exacerbated by loudspeakers with downward firing speakers, or by in-wall mounted loudspeakers.
Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.
True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.
Meridian Digital Precision maximises the signal-to-noise ratio of the digital audio, ensuring the finest details of every song are retained.
Architectural Performance Range
Our Architectural loudspeakers incorporate resolution enhancing technologies for the ultimate listening experience in a large range of installation applications. With virtually no visual impact to the decor, these powerful, full-range in-wall solutions require only a 100mm mounting depth and produce wide sound dispersion over the listening area.
Here you will find a quick overview of the product highlights and features.
Here you will find installation information and operating instructions.
Here you will find a summary of the complete range of Meridian products in one document.
Audio Inputs
Meridian SpeakerLink (RJ45) accepting 32kHz to 96kHz sampling rates at up to 24-bit
Audio Outputs
Meridian SpeakerLink (RJ45) delivering 32kHz to 96kHz sampling rates at up to 24-bit
Performance
Frequency response: 24Hz to 120Hz
Amplifiers
1 x Class D amplifier capable of producing over 600W RMS on music or movie transients
Bass Drivers

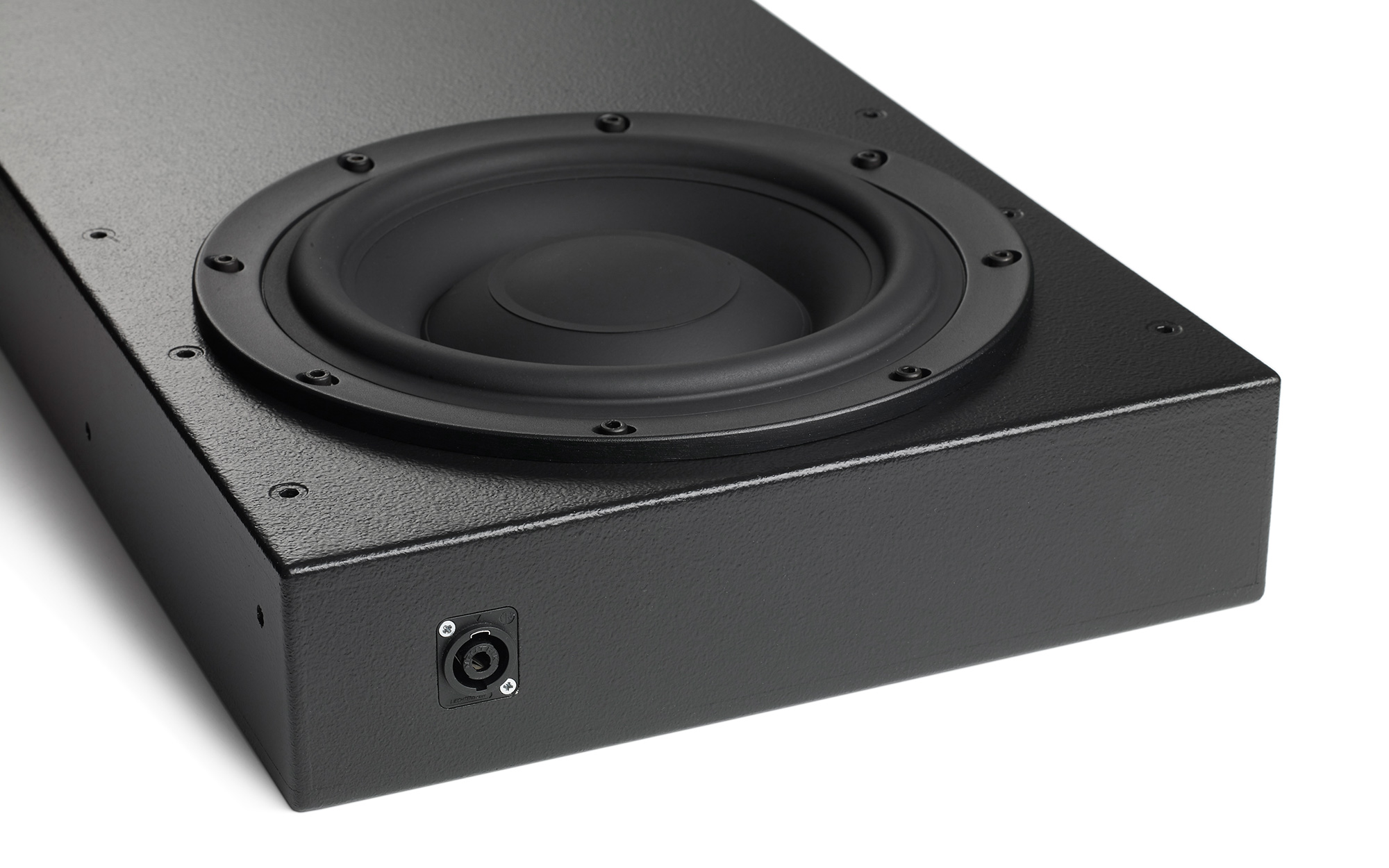

1 x 10in long-throw, low profile design
Controls
Power On/Off switch
Channel selector switch to select which digital audio received via the SpeakerLink input is played
LED indicator shows power status
Power
IEC mains connector - 550W
Product Dimensions
HEIGHT - with grille fitted: 1452mm (57.2in)
HEIGHT - without grille: 1429mm (56.3in)
WIDTH: 343mm* (13.5in)
DEPTH: 87mm (3.4in)•Weight: 23kg (50.6lbs)
Packed Dimensions
LENGTH: 1340mm (52.8in)
WIDTH: 485mm (19.1in)
DEPTH: 290mm (11.4in)
WEIGHT: 30kg (66.0lbs)
