The Meridian M6 is a visually stunning loudspeaker. Featuring individual components that are perfectly matched and sonically balanced, the entire system’s electronics are housed within the enclosure and deliver a level of performance that is unsurpassed by traditional speaker design.

Whether used individually, in a stereo pair or within a surround-sound system, the gently tapered and cylindrical shape gives the M6 its naturally wide dispersion pattern which fills a room with a superbly-imaged, natural sound that can be enjoyed from any position. The M6 not only looks stylish but also provides a powerful performance every time.

Performance Series

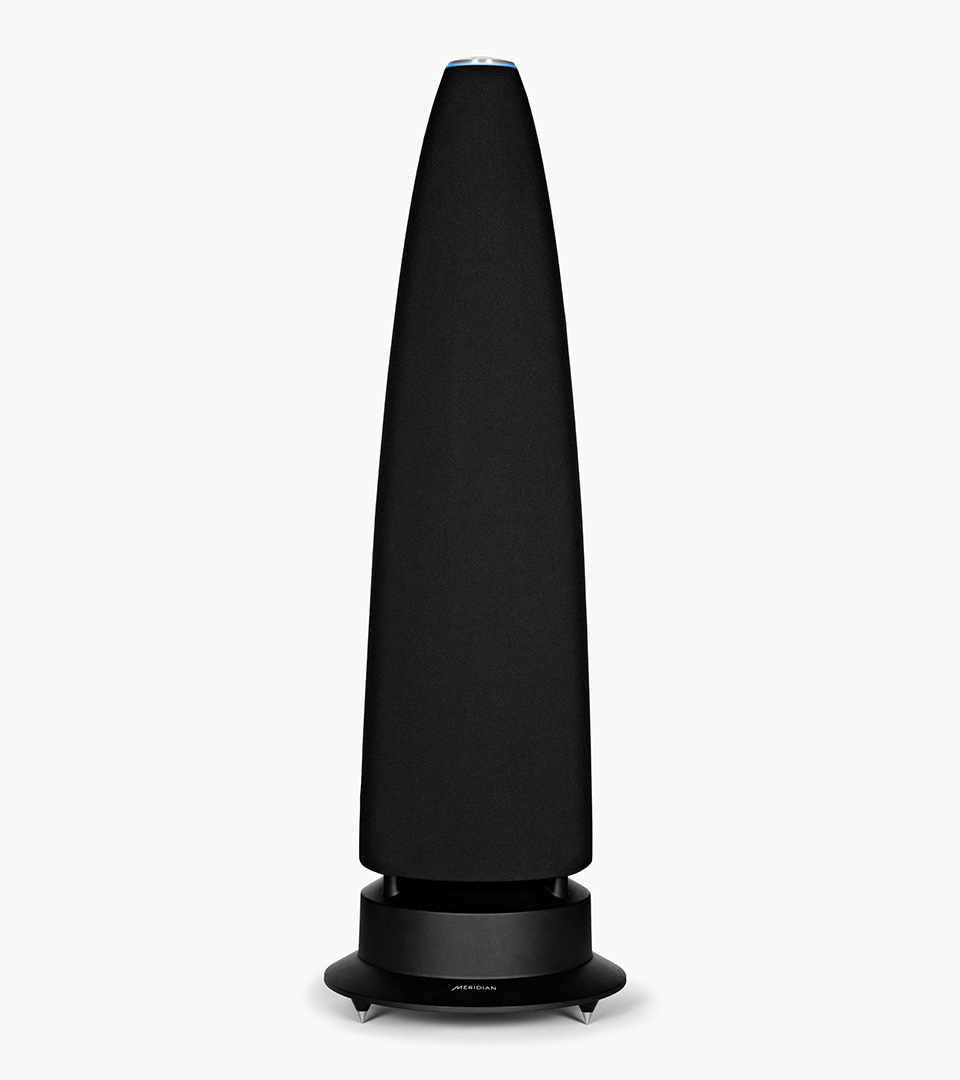

M6

The award winning M6 incorporates high performance amplifiers and electronics which are all neatly hidden. Whether used individually, in a stereo pair or within a surround-sound system, the M6 digital active loudspeaker combines superb sound with elegant design to complement any room setting and layout.

Resonance Control

Meridian Resonance Control uses the dimensions of the room in order to compensate for the primary modal resonances that are especially exacerbated by loudspeakers with downward firing speakers, or by in-wall mounted loudspeakers.

Bespoke Signal Mapping

Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.

E3 Bass

Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.

FFA

FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeaker. It ensures that all frequencies reach the listener's ear at the same time.

Pro-Active Bass

Meridian Pro-Active Bass protects the bass driver from over-excursion, ensuring maximum bass output without damaging the drive unit.

Pro-Active Thermal

Meridian Pro-Active Thermal monitors the audio being sent to the wide-range driver and limits the overall volume of the loudspeaker if there is a risk of the drive unit getting too hot.

Q-Sync

Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.

True Link

Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.

Free-Q

Meridian Free-Q is used to compensate for acoustic problems associated with specific loudspeaker placement conditions.

The Performance Series

The Performance range of Meridian loudspeakers adopts the same cabinet design and many of the integrated technology principles featured in the Reference range.

The traditional setup – amplifiers driving passive loudspeakers – is inefficient, limiting sound quality. Meridian Performance loudspeakers contain a complete, matched audio system with efficient DSP crossovers, multiple DACs and driver-specific amplifiers, giving higher overall quality and less power use.

The Search for Authenticity

Understanding the perfect formula for sound: technology plus emotion.

Find out More

With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.

AT A GLANCE

Here you will find a quick overview of the product highlights and features.

USER GUIDE

Here you will find installation information and operating instructions.

PRODUCT BROCHURE

Here you will find a summary of the complete range of Meridian products in one document.

AUDIO INPUT

1 x Meridian SpeakerLink (RJ45) accepting 32kHz to 96kHz sampling rates at up to 24-bit


AUDIO OUTPUT

1 x Meridian SpeakerLink (RJ45) delivering 32kHz to 96kHz sampling rates at up to 24-bit




PERFORMANCE

Peak SPL: 114dB at 1m (music material)

Noise less than 15dB spl. Overall distortion typically <0.02% at any frequency or level

Frequency response In room within 3dB: 38Hz - over 20kHz


BASS DRIVER

1 x 140mm aluminium cone


WIDE RANGE DRIVER

1 X 85mm aluminium cone


DIMENSIONS / WEIGHT

HEIGHT: 921mm [36.26in] (Including feet)

DIAMETER 300mm [11.8in] at base, 66mm [2.6in] at top

WEIGHT: 18kg [39.6lbs]


DISPLAY

Discreet light halo indicates whether the speaker is operating (white) or in standby (blue)


POWER

500W (maximum)
